UL11026 Light Duty Instrument mPPE Wire Dongguan Made Single-insulated 125V 105C

Name: UL11026 Light Duty Instrument mPPE Wire Dongguan Made Singleinsulated 125V 105C
Brand: WCH Cable
Price: 0.06 USD

Quality UL11026 Light Duty Instrument mPPE Wire Dongguan Made Single-insulated 125V 105C wholesale

Brand Name : WCH Cable

Model Number : UL11026

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 610 meters

Price : USD 0.06 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per reel or spool

Feature : Light Duty, Instrument Use

Rated Voltage : 125V

UL Style Number : UL11026

Insulation Material : mPPE

Conductor Material : Pure Copper Wire

Executed Standard : UL758

Contact Now

UL Style Description: Insulated Wire
Rating: 105 deg C, 125 Vac, Horizontal flame..
Conductor Size: 40 - 10 AWG.
Insulation Material: Extruded mPPE.
Executed Standard: Appliance Wiring Material UL758.
Application: Internal wiring.

Approval Style Number	Conductor		Insulation Thickness	Overall Diameter	Standard Put-up		Conductor Resistance
Approval Style Number	AWG	No/mm	mm	mm	Feet/Reel	Meter/Reel	Ω/KM
UL11026	30	7/0.100	0.21	0.80	2000	610	381.00
	28	7/0.127	0.21	0.90	2000	610	239.00
	26	7/0.16	0.21	1.00	2000	610	150.00
	24	11/0.16	0.21	1.10	2000	610	94.20
	22	17/0.16	0.21	1.30	2000	610	59.40
	20	21/0.178	0.21	1.50	2000	610	36.70
	18	34/0.178	0.21	1.70	2000	610	23.20
	16	26/0.25	0.21	2.00	2000	610	14.60
UL11026	30	1/0.25	0.21	0.75	2000	610	361.00
	28	1/0.32	0.21	0.80	2000	610	227.00
	26	1/0.404	0.21	0.90	2000	610	143.00
	24	1/0.511	0.21	1.00	2000	610	89.30
	22	1/0.643	0.21	1.15	2000	610	56.40
	20	1/0.813	0.21	1.30	2000	610	35.20
	18	1/1.024	0.21	1.50	2000	610	22.20
	16	1/1.29	0.21	1.80	2000	610	14.00

UL11026 Light Duty Instrument mPPE Wire Dongguan Made Single-insulated 125V 105C

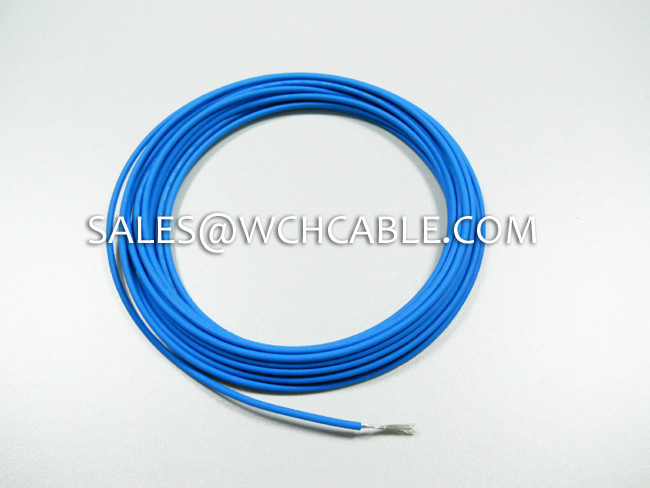

UL11026 Light Duty Instrument mPPE Wire Dongguan Made Single-insulated 125V 105C Images
